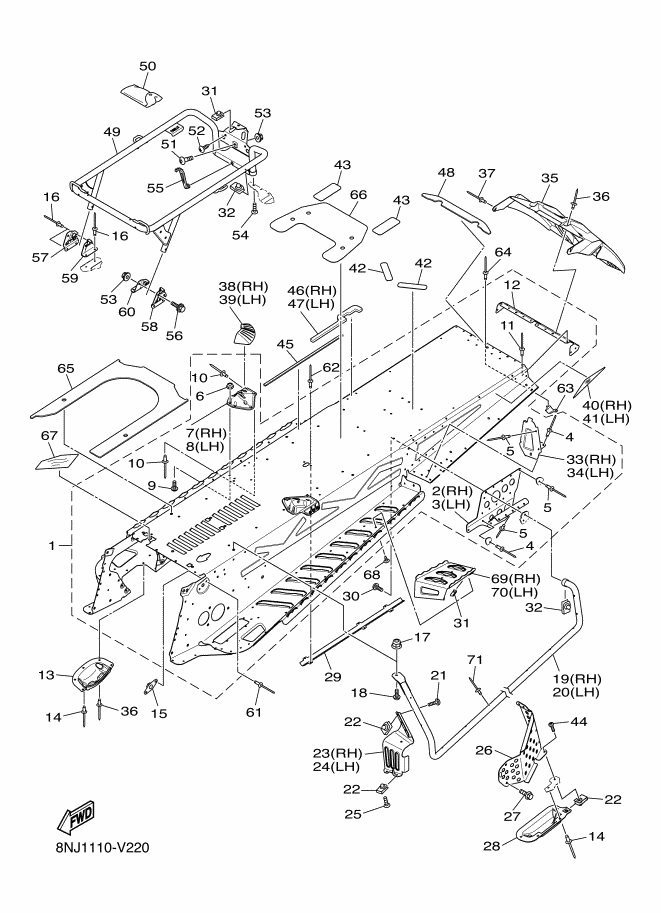

| 1. |
REAR FRAME COMP.
8NJ-F1950-00
7414.38 PLN
|
| 2. |
. BRACKET,RR.TRACK SUSPENTION 2
8NJ-F1954-00
755.75 PLN
|
| 3. |
. BRACKET,RR.TRACK SUSPENTION 1
8NJ-F1944-00
755.75 PLN
|
| 4. |
. RIVET, 9
8JP-RA518-00
2.67 PLN
|
| 5. |
. RIVET
8JP-RA527-00
22.40 PLN
|
| 6. |
. NUT, SELF-LOCKING
8JP-RA370-00
5.44 PLN
|
| 7. |
. BRKT., MEMBER 2
8LY-F115M-00
648.85 PLN
|
| 8. |
. BRACKET, MEMBER 1
8LY-F115L-00
648.85 PLN
|
| 9. |
. SCREW
8JP-RA241-00
74.34 PLN
|
| 10. |
. RIVET
8JP-RA528-00
53.19 PLN
|
| 11. |
. RIVET, 5
8JP-RA514-10
3.92 PLN
|
| 12. |
. REINEFORCEMENT, FRAME REAR 1
8NJ-F1923-00
411.84 PLN
|
| 13. |
PROTECTOR, CHAIN
8JP-F2147-00
55.35 PLN
|
| 14. |
RIVET, 14
8JP-RA523-00
5.44 PLN
|
| 15. |
BRACKET
8JP-F1919-00
276.07 PLN
|
| 16. |
RIVET, 11
8JP-RA520-00
3.92 PLN
|
| 17. |
NUT, SELF-LOCKING
8JM-RA301-00
7.11 PLN
|
| 18. |
SCREW
8JP-RA272-00
17.93 PLN
|
| 19. |
REINFORCEMENT, FRAME
8NJ-F192E-00
1647.67 PLN
|
| 20. |
REINFORCEMENT, FRAME SIDE
8NJ-F1929-00
1647.67 PLN
|
| 21. |
SCREW
8JP-RA247-00
34.94 PLN
|
| 22. |
NUT, SPRING
8JP-RA353-00
23.36 PLN
|
| 23. |
REINFORCEMENT SUB FRAME FR 2
8LR-F1996-00
476.86 PLN
|
| 24. |
REINFORCEMENT SUB FRAME FR 1
8LR-F1995-00
476.86 PLN
|
| 25. |
SCREW
8JP-RA251-00
37.13 PLN
|
| 26. |
PROTECTOR, DISK BRAKE
8NJ-F5718-00
745.53 PLN
|
| 27. |
BOLT, FLANGE
8JP-RA179-00
25.12 PLN
|
| 28. |
PROTECTOR, DISK BRAKE
8JP-F5717-00
58.68 PLN
|
| 29. |
PROTECTER, WIRE HARNESS
8MG-H2589-00
197.38 PLN
|
| 30. |
SCREW
8JP-RA261-00
10.85 PLN
|
| 31. |
NUT, SPRING
8JP-RA351-00
42.09 PLN
|
| 32. |
NUT, SPRING
8JP-RA354-00
10.32 PLN
|
| 33. |
. REINFORCEMENT, RR. FOOTREST 2
8NJ-F1937-00
706.35 PLN
|
| 34. |
. REINFORCEMENT, RR. FOOTREST 1
8NJ-F1927-00
411.84 PLN
|
| 35. |
FLAP
8LN-K7595-00
152.57 PLN
|
| 36. |
RIVET, 15
8JP-RA524-00
5.44 PLN
|
| 37. |
RIVET, 16
8LN-RA525-00
7.11 PLN
|
| 38. |
SUPT., FUEL TANK 2
8JP-F2556-00
140.53 PLN
|
| 39. |
SUPT., FUEL TANK 1
8JP-F2555-00
140.53 PLN
|
| 40. |
LABEL 3
8LN-F151F-00
298.23 PLN
|
| 41. |
LABEL 2
8LN-F151E-00
298.23 PLN
|
| 42. |
PROTECTOR, FRAME B
8LN-F195B-00
59.02 PLN
|
| 43. |
PROTECTOR, FRAME A
8LN-F195A-00
12.07 PLN
|
| 44. |
SCREW
8JP-RA244-00
5.44 PLN
|
| 45. |
PLATE, BODY PROTECT 1
8LN-K8261-00
25.12 PLN
|
| 46. |
PLATE, BODY PROTECT 2
8LN-K8262-00
67.19 PLN
|
| 47. |
PLATE, BODY PRTOTECT 3
8LN-K8263-00
67.19 PLN
|
| 48. |
PLATE, BODY PROTECT 4
8LN-K8264-00
36.20 PLN
|
| 49. |
FRAME, LUGGAGE RACK REAR
8LN-K8341-00
3456.13 PLN
|
| 50. |
TOOL KIT
8JP-F8100-00
522.64 PLN
|
| 51. |
BOLT
8LN-K7519-00
8.65 PLN
|
| 52. |
SCREW, TAPPING
8JP-RA280-00
8.11 PLN
|
| 53. |
NUT, FLANGE M6-1.0
8JM-RA322-00
3.65 PLN
|
| 54. |
BOLT 1
8LN-K7537-00
5.93 PLN
|
| 55. |
END, STRAP
8LN-F15A4-00
34.44 PLN
|
| 56. |
BOLT, FLANGE
8JP-RA1B4-10
72.00 PLN
|
| 57. |
BRACKET, 1
8LN-K7531-00
186.01 PLN
|
| 58. |
BRACKET, FRONT (L.H)
8LN-K7532-00
186.01 PLN
|
| 59. |
BRACKET, REAR (R.H)
8LN-K7533-00
186.01 PLN
|
| 60. |
BRACKET, REAR (L.H)
8LN-K7534-00
422.25 PLN
|
| 61. |
RIVET, 10
8JP-RA519-00
3.92 PLN
|
| 62. |
RIVET, 17
8JP-RA529-00
4.43 PLN
|
| 63. |
EXTENSION, WIRE HARNESS
8MG-H258A-00
105.04 PLN
|
| 64. |
RIVET, 18
8JP-RA530-00
2.85 PLN
|
| 65. |
PLATE, BODY PROTECT 1
8MJ-K8261-00
208.61 PLN
|
| 66. |
PROTECTOR, FUEL TANK
8MJ-F4141-00
141.50 PLN
|
| 67. |
PROTECTOR 7
8KC-K7557-10
49.73 PLN
|
| 68. |
SCREW
8KC-RA290-00
6.68 PLN
|
| 69. |
FOOTREST, REAR 2
8NJ-F7441-00
716.40 PLN
|
| 70. |
FOOTREST, REAR 1
8NJ-F7431-00
716.40 PLN
|
| 71. |
RIVET, 9
8JP-RA518-00
2.67 PLN
|
